Results
|
|
|
|
|
|
 |
The four charts (Figures 10-13) summarize data collected over the past 15 years for each glacier. The vertical axis is the amount of water gained (winter balance), lost (summer balance), and retained (net balance) in meters of water equivalent (m.w.e.) averaged across the glacier. We use water equivalent as a measure because of the varying density of snow, ice and firn. This system allows us to summarize the melting of all three as one value. The horizontal axis lists the year of measurement on each glacier. Winter balance is always positive, while the summer balance is always negative. The net balance varies depending on whether or not the snowfall from the previous winter exceeded melting the following summer. It is important to note that the lower elevation stations almost always have negative net annual balances, while the upper stations almost always have positive net annual balances. Melting at the lowest stations is often greater than eight vertical meters. In addition, the data show a tendency for cool summers following wet winters, along with hot summers following dry winters. When these seasonal factors are coupled, the glaciers respond by positive balance and extreme negative balance, respectfully.
|

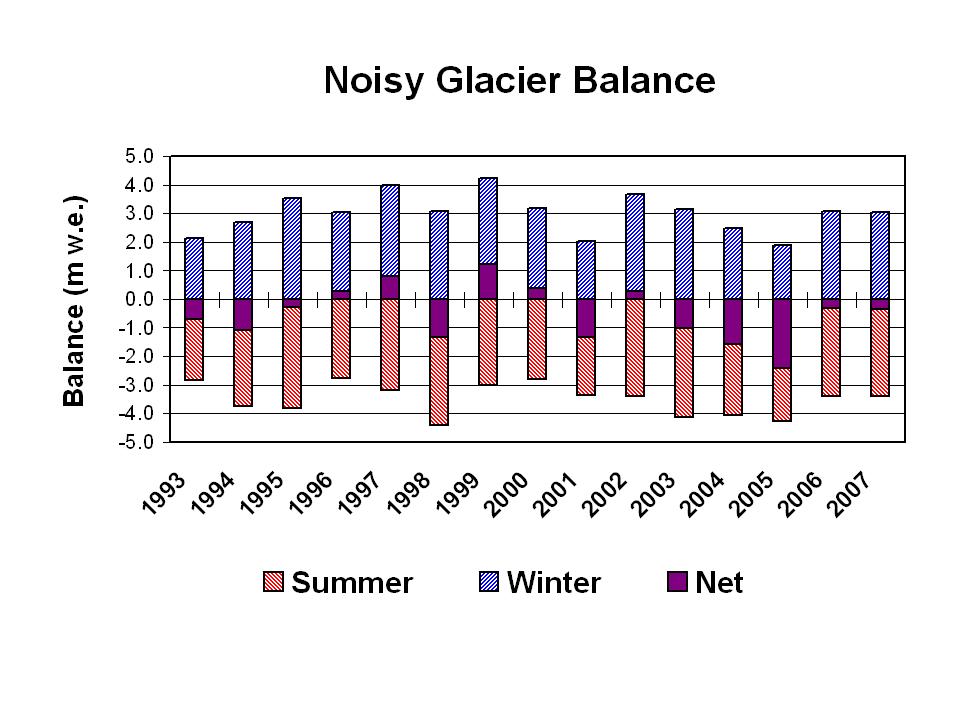

| Figure 10 - Noisy Glacier Balance |
|
|
| Figure 11 - Silver Glacer Mass Balance |
|
|

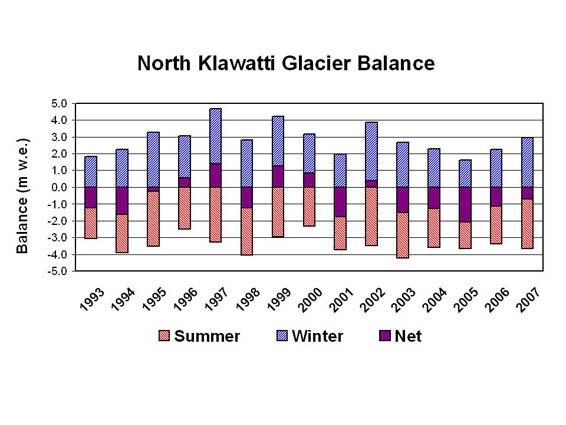

| Figure 12 - North Klawatti Glacier Balance |
|
|
| Figure 13 - Sandalee Glacier Balance |
|
|
|
 |
|
|
|
|
|
 |
|
